Object types #
Object types enhance stereotypes and add a possibility to create more output scripts. Each object type can be connected to a specific template that ensures specific output.
Object types are connected to element types. Combination of an element type, an object type and a stereotype determines a selection of the template for the specific technology.
Each element type has a default object type with the same name.

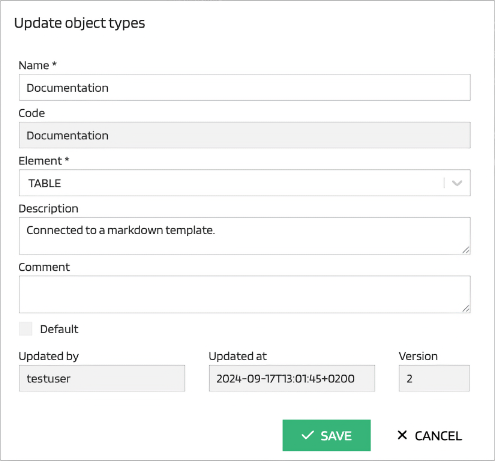

Object type update #
| Attribute | Description |
|---|---|
| Name | The object type name. The name should be descriptive to serve for quick orientation in the metadata. |
| Code | Code is a shortened name of the object type - See Code generation principles |
| Description | A free text explaining the object type meaning |
| Comment | A free text commenting the object type |
| Element | The element supported by this object type |
